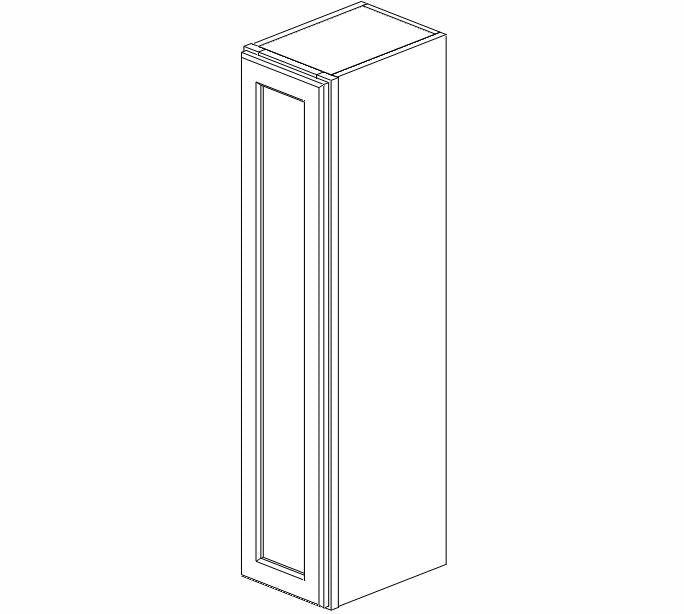

Configuration illustration — see finish sample for actual color and door style.
Shakertown
Wall Cabinet
SKU: AK-W0942
1 Door · Ready to assemble
Shipping calculated at checkout.
Shop Shakertown →Product details
AK-W0942 is a 9-inch-wide Shakertown kitchen wall cabinet that ships ready to assemble. Its nominal dimensions are 9 inches wide, 12 inches deep, and 42 inches high. The listed configuration has one door. Compare its 42-inch height with neighboring wall cabinets in the same kitchen plan. Its 9-inch width and door count help identify where it fits in the planned cabinet run. Check the available wall space before ordering.
- Cabinet type
- Wall
- Dimensions
- 9"W x 12"D x 42"H
- Configuration
- 1 Door
- Assembly
- Ready to assemble
Shakertown construction
Line features apply when the listed components are included in this cabinet.
- 1/2" Plywood Cabinet Sides
- Soft-Close Hinges
- Matching Interior
Full Shakertown specificationsShow detailsHide details
Cabinet box & interior
- Cabinet material
- Solid Birch
- Base cabinet bottom
- 3/8" A-Grade plywood with wood veneer
- Back panel
- 1/2" picture frame recess style
- Cabinet front frame
- 3/4” Solid Birch
- Interior finish
- Matching interior (matches door color)
- Cabinet sides, top & bottom
- 1/2” A-Grade plywood with wood veneer
- Center stile
- No center stile on cabinetry 24”W to 36”W
Door & drawer fronts
- Door profile
- Recess Square
- Door frame
- 3/4” Solid Birch
- Door center
- MDF with Birch Veneer
- Style
- Full overlay, butt door
- Standard door hinge side
- Doors come hinged right standard
Drawers
- Drawer box
- Solid Wood 17mm (close to 3/4”T), Drawer bottom 3/8” plywood
- Drawer glides
- Undermount, Full extension with soft close feature
- Drawer construction
- Drawer length 21”, Dovetail construction, Natural finish
Hardware & shelves
- Assembly clips
- Pre-installed, color coated metal clip, won’t tarnish
- Shelves
- 3/4” A-Grade plywood with wood veneer
- Base corner supports
- Wood corner brackets with I-Beam construction
- Shelf clips
- Metal shelf clips standard
- Door hinges
- Concealed 6-way adjustable soft close door hinges
Assembly guides
Shipping & delivery
Care & warranty
Our design team can help plan your kitchen.
All Cabinets are Shipped RTA Ready-to-Assemble
All cabinets are shipped RTA Ready-to-assemble. The majority of standard base and wall cabinets take between 7-15 minutes to put together. Larger cabinets such as drawer base cabinets, pantry cabinets and oven cabinets can take longer.
Assembly Guides
