Cabinet Assembly Guides

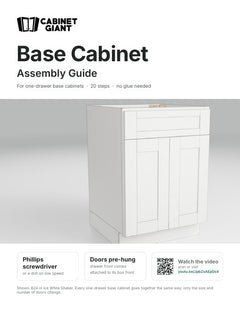

For one-drawer base cabinets. Covers the cabinet box, I-beams and corner braces, drawer glides, the drawer box, shelf, bumpers and door adjustment.

3:38

Shown: B24 in Ice White Shaker

Jump to a chapter

1. 0:00 Before you start
2. 0:12 How the clips work
3. 0:31 Build the cabinet box (steps 1–9)
4. 1:33 I-beams and corner braces (10–11)
5. 1:54 Drawer glides (12–13)
6. 2:10 Build the drawer (14–16)
7. 2:41 Install the drawer (17)
8. 2:59 Shelf, bumpers and doors (18–20)
9. 3:27 Assembly complete

See all 20 steps

1. Lay the face frame down
2. Attach the right side
3. Attach the left side
4. Add the bottom panel
5. Add the back panel
6. Drive the inside locking screws
7. Add the toe kick
8. Lock the bottom clips
9. Stand the cabinet up
10. Add the I-beams
11. Add the corner braces
12. Add the rear glide brackets
13. Install the glides
14. Attach the sides to the drawer front
15. Add the bottom and back
16. Fasten the front, add locking devices
17. Install the drawer
18. Add the shelf
19. Add the bumpers
20. Adjust the doors

Printable guide

8 pages, US Letter. Every step with a picture, plus a QR code back to this video.

Download PDF Watch on YouTube

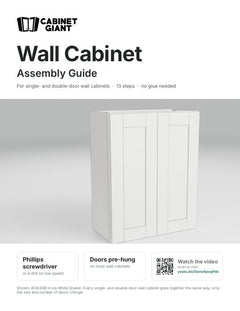

For single- and double-door wall cabinets. Covers the cabinet box, back panel, shelves, bumpers and door adjustment.

2:20

Shown: W2430B in Ice White Shaker

Jump to a chapter

1. 0:00 Before you start
2. 0:12 How the clips work
3. 0:35 Build the cabinet box (steps 1–8)
4. 1:34 Stand it up, add the shelves (9–11)
5. 1:52 Bumpers and door adjustment (12–13)
6. 2:08 Assembly complete

See all 13 steps

1. Lay the face frame down
2. Attach the right side
3. Attach the left side
4. Add the bottom panel
5. Add the top panel
6. Drive the locking screws
7. Slide in the back panel
8. Screw the back to the rails
9. Stand the cabinet up
10. Insert the shelf clips
11. Set the shelves
12. Add the door bumpers
13. Adjust the doors

Printable guide

6 pages, US Letter. Every step with a picture, plus a QR code back to this video.

Download PDF Watch on YouTube

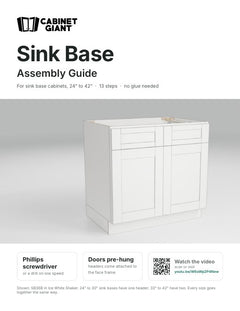

For sink base cabinets with one or two headers. Covers the cabinet box, back panel, toe kick, I-beams and corner braces, bumpers and door adjustment.

2:33

Shown: SB36B in Ice White Shaker

Jump to a chapter

1. 0:00 Before you start
2. 0:23 How the clips work
3. 0:41 Build the cabinet box (steps 1–8)
4. 1:41 I-beams and corner braces (9–11)
5. 2:06 Bumpers and doors (12–13)
6. 2:22 Assembly complete

See all 13 steps

1. Lay the face frame down
2. Attach the right side
3. Attach the left side
4. Add the bottom panel
5. Add the back panel
6. Drive the inside locking screws
7. Add the toe kick
8. Lock the bottom clips
9. Stand the cabinet up
10. Add the I-beams
11. Add the corner braces
12. Add the bumpers
13. Adjust the doors

Printable guide

6 pages, US Letter. Every step with a picture, plus a QR code back to this video.

Download PDF Watch on YouTube

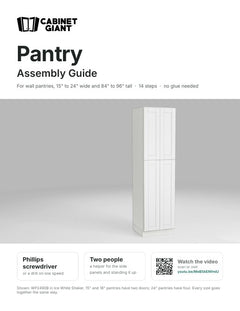

For wall pantries, 15" to 24" wide and 84" to 96" tall. Covers the cabinet box, fixed shelf, back panel, toe kick, standing it up, shelves, bumpers and door adjustment. Check your ceiling height first.

3:13

Shown: WP2490B in Ice White Shaker

Jump to a chapter

1. 0:00 Before you start
2. 0:28 Check your ceiling
3. 0:47 How the clips work
4. 1:05 Build the cabinet box (steps 1–9)
5. 2:19 Stand it up, lock the back (10–11)
6. 2:35 Shelves, bumpers and doors (12–14)
7. 3:02 Assembly complete

See all 14 steps

1. Lay the face frame down
2. Attach the right side
3. Attach the left side
4. Add the bottom panel
5. Add the fixed shelf
6. Add the top panel
7. Lock the face frame
8. Add the back panel
9. Add the toe kick
10. Stand the cabinet up
11. Lock the back
12. Add the shelves
13. Add the bumpers
14. Adjust the doors

Printable guide

6 pages, US Letter. Every step with a picture, plus a QR code back to this video.

Download PDF Watch on YouTube
