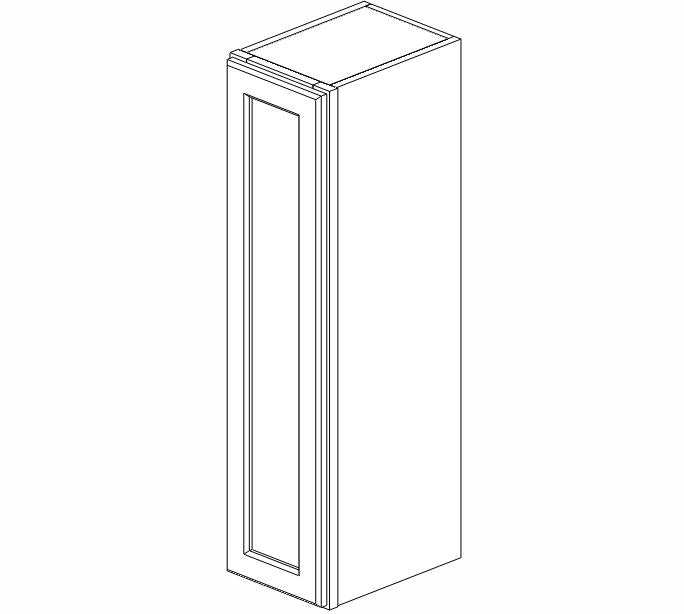

Configuration illustration — see finish sample for actual color and door style.
Townsquare Grey
Wall Cabinet
SKU: TS-W0936
1 Door · Ready to assemble
Normally ships within 2-3 weeks
Shipping calculated at checkout.
Order Sample DoorShop Townsquare Grey →Product details
TS-W0936 is a 9-inch-wide Townsquare Grey kitchen wall cabinet that ships ready to assemble. Its nominal dimensions are 9 inches wide, 12 inches deep, and 36 inches high. The listed configuration has one door. Compare its 36-inch height with neighboring wall cabinets in the same kitchen plan. Its 9-inch width and door count help identify where it fits in the planned cabinet run. Check the available wall space before ordering.
- Cabinet type
- Wall
- Dimensions
- 9"W x 12"D x 36"H
- Configuration
- 1 Door
- Assembly
- Ready to assemble
Townsquare Grey construction
Line features apply when the listed components are included in this cabinet.
- 1/2" Plywood Box
- Soft-Close Hinges
- Matching Interior
Full Townsquare Grey specificationsShow detailsHide details
Cabinet box & interior
- Sides, top & bottom
- 1/2″ A-grade plywood with wood veneer
- Base cabinet bottom
- 3/8″ A-grade plywood with wood veneer
- Back panel
- Wall: 1/2″ recessed picture-frame style; base: 1/2″ full back
- Front frame
- 3/4″ solid wood
- Interior finish
- Matches the door color
- Center stile
- None on cabinetry 24″W to 36″W
Door & drawer fronts
- Door frame
- 3/4″ solid wood
- Door center
- MDF with wood veneer
- Door profile
- Recessed square
- Style
- Full overlay, butt door
- Standard door hinge side
- Right
Drawers
- Drawer box
- 17 mm solid wood with 3/8″ plywood bottom; 21″ length, dovetail construction, natural finish
- Drawer glides
- Undermount, full extension, soft close
Hardware & shelves
- Door hinges
- Concealed, six-way adjustable, soft close
- Shelves
- 3/4″ A-grade plywood with wood veneer
- Shelf clips
- Metal
- Assembly clips
- Pre-installed, color-coated metal
- Base construction
- Wood corner brackets and I-beam construction
Assembly guides
Shipping & delivery
Care & warranty
Our design team can help plan your kitchen.
All Cabinets are Shipped RTA Ready-to-Assemble
All cabinets are shipped RTA Ready-to-assemble. The majority of standard base and wall cabinets take between 7-15 minutes to put together. Larger cabinets such as drawer base cabinets, pantry cabinets and oven cabinets can take longer.
