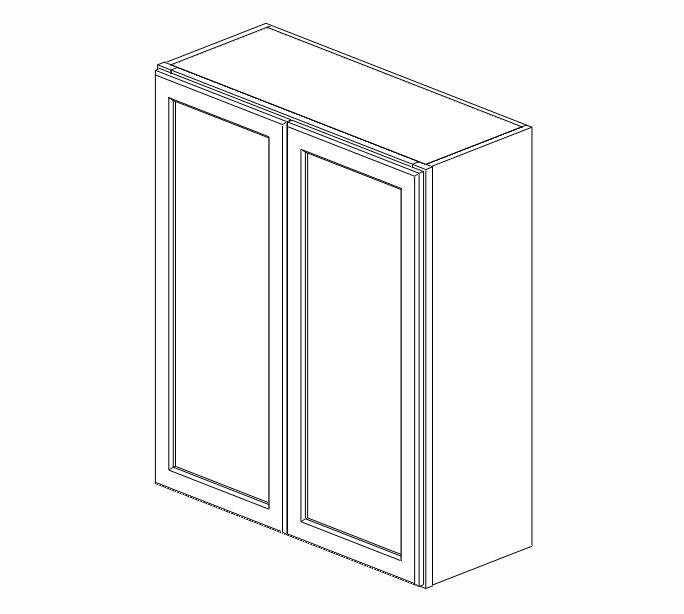

Configuration illustration — see finish sample for actual color and door style.
Townsquare Grey
Wall Cabinet
SKU: TS-W3036B
2 Doors · Ready to assemble
Normally ships within 2-3 weeks
Shipping calculated at checkout.
Order Sample DoorShop Townsquare Grey →Product details
TS-W3036B is a 30-inch-wide Townsquare Grey kitchen wall cabinet that ships ready to assemble. Its nominal dimensions are 30 inches wide, 12 inches deep, and 36 inches high. The listed configuration has two doors. Compare its 36-inch height with neighboring wall cabinets in the same kitchen plan. Its 30-inch width and door count help identify where it fits in the planned cabinet run. Check the available wall space before ordering.
- Cabinet type
- Wall
- Dimensions
- 30"W x 12"D x 36"H
- Configuration
- 2 Doors
- Assembly
- Ready to assemble
Townsquare Grey construction
Line features apply when the listed components are included in this cabinet.
- 1/2" Plywood Box
- Soft-Close Hinges
- Matching Interior
Full Townsquare Grey specificationsShow detailsHide details
Cabinet box & interior
- Sides, top & bottom
- 1/2″ A-grade plywood with wood veneer
- Base cabinet bottom
- 3/8″ A-grade plywood with wood veneer
- Back panel
- Wall: 1/2″ recessed picture-frame style; base: 1/2″ full back
- Front frame
- 3/4″ solid wood
- Interior finish
- Matches the door color
- Center stile
- None on cabinetry 24″W to 36″W
Door & drawer fronts
- Door frame
- 3/4″ solid wood
- Door center
- MDF with wood veneer
- Door profile
- Recessed square
- Style
- Full overlay, butt door
- Standard door hinge side
- Right
Drawers
- Drawer box
- 17 mm solid wood with 3/8″ plywood bottom; 21″ length, dovetail construction, natural finish
- Drawer glides
- Undermount, full extension, soft close
Hardware & shelves
- Door hinges
- Concealed, six-way adjustable, soft close
- Shelves
- 3/4″ A-grade plywood with wood veneer
- Shelf clips
- Metal
- Assembly clips
- Pre-installed, color-coated metal
- Base construction
- Wood corner brackets and I-beam construction
Assembly guides
Shipping & delivery
Care & warranty
Our design team can help plan your kitchen.
All Cabinets are Shipped RTA Ready-to-Assemble
All cabinets are shipped RTA Ready-to-assemble. The majority of standard base and wall cabinets take between 7-15 minutes to put together. Larger cabinets such as drawer base cabinets, pantry cabinets and oven cabinets can take longer.
Assembly Guides
