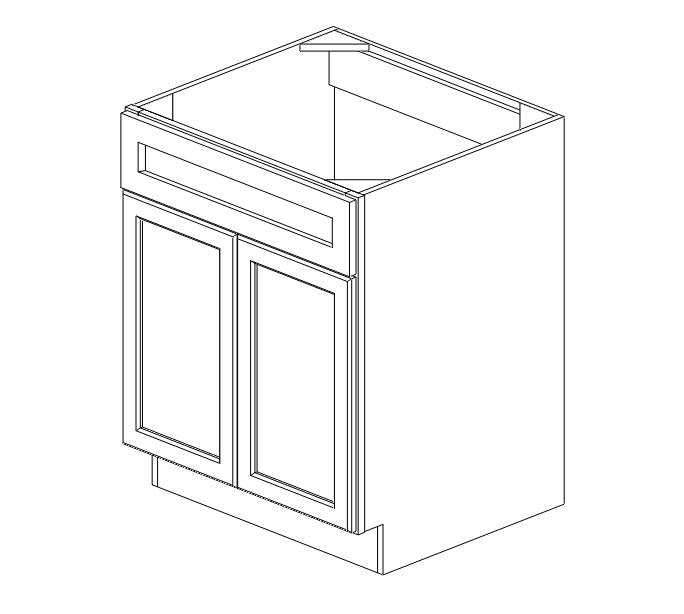

Configuration illustration — see finish sample for actual color and door style.
Shakertown
Sink Base Cabinet
SKU: AK-SB24B
2 Doors 1 Header · Ready to assemble
Shipping calculated at checkout.
Shop Shakertown →Product details
AK-SB24B is a 24-inch-wide Shakertown kitchen sink base cabinet that ships ready to assemble. Its nominal dimensions are 24 inches wide, 24 inches deep, and 34-1/2 inches high. The listed configuration has two doors and one header. Use its width and door layout to compare it with adjoining base cabinets in your kitchen plan. Check the sink and countertop requirements against the cabinet dimensions before ordering.
- Cabinet type
- Sink Base
- Dimensions
- 24"W x 24"D x 34-1/2"H
- Configuration
- 2 Doors 1 Header
- Assembly
- Ready to assemble
Shakertown construction
Line features apply when the listed components are included in this cabinet.
- 1/2" Plywood Cabinet Sides
- Soft-Close Hinges
- Matching Interior
Full Shakertown specificationsShow detailsHide details
Cabinet box & interior
- Cabinet material
- Solid Birch
- Base cabinet bottom
- 3/8" A-Grade plywood with wood veneer
- Back panel
- 1/2" picture frame recess style
- Cabinet front frame
- 3/4” Solid Birch
- Interior finish
- Matching interior (matches door color)
- Cabinet sides, top & bottom
- 1/2” A-Grade plywood with wood veneer
- Center stile
- No center stile on cabinetry 24”W to 36”W
Door & drawer fronts
- Door profile
- Recess Square
- Door frame
- 3/4” Solid Birch
- Door center
- MDF with Birch Veneer
- Style
- Full overlay, butt door
- Standard door hinge side
- Doors come hinged right standard
Drawers
- Drawer box
- Solid Wood 17mm (close to 3/4”T), Drawer bottom 3/8” plywood
- Drawer glides
- Undermount, Full extension with soft close feature
- Drawer construction
- Drawer length 21”, Dovetail construction, Natural finish
Hardware & shelves
- Assembly clips
- Pre-installed, color coated metal clip, won’t tarnish
- Shelves
- 3/4” A-Grade plywood with wood veneer
- Base corner supports
- Wood corner brackets with I-Beam construction
- Shelf clips
- Metal shelf clips standard
- Door hinges
- Concealed 6-way adjustable soft close door hinges
Assembly guides
Shipping & delivery
Care & warranty
Our design team can help plan your kitchen.
All Cabinets are Shipped RTA Ready-to-Assemble
All cabinets are shipped RTA Ready-to-assemble. The majority of standard base and wall cabinets take between 7-15 minutes to put together. Larger cabinets such as drawer base cabinets, pantry cabinets and oven cabinets can take longer.
