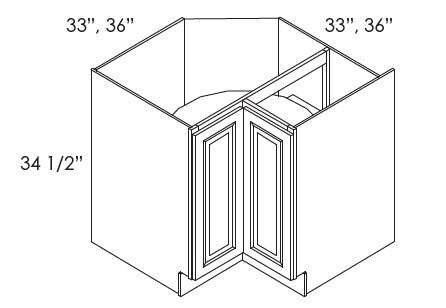

Configuration illustration — see finish sample for actual color and door style.
Townsquare Grey
Corner Base Lazy Susan Cabinet w/ Revolving Shelves
SKU: TS-LS3309
Normally ships within 2-3 weeks
Shipping calculated at checkout.
Order Sample DoorShop Townsquare Grey →Product details
TS-LS3309 is the Townsquare Grey Corner Base Lazy Susan Cabinet w/ Revolving Shelves. Its listed size is 33 inches wide, 24 inches deep, and 34-1/2 inches high. Check the listed cabinet footprint, door operation, and shelf style; rotating tray and fixed-shelf versions differ.
- Product information
- 33"Wx24"Dx34-1/2"H, 1 Bi-Fold Door (9" Each Side), Rotating Tray - Not soft closing doors
Townsquare Grey construction
Line features apply when the listed components are included in this cabinet.
- 1/2" Plywood Box
- Matching Interior
Full Townsquare Grey specificationsShow detailsHide details
Cabinet box & interior
- Sides, top & bottom
- 1/2″ A-grade plywood with wood veneer
- Base cabinet bottom
- 3/8″ A-grade plywood with wood veneer
- Back panel
- 1/2″ recessed picture-frame style
- Front frame
- 3/4″ solid wood
- Interior finish
- Matches the door color
- Center stile
- None on cabinetry 24″W to 36″W
Door & drawer fronts
- Door frame
- 3/4″ solid wood
- Door center
- MDF
- Door profile
- Raised square
- Style
- Full overlay, butt door
- Standard door hinge side
- Right
Drawers
- Drawer box
- 17 mm solid wood with 3/8″ plywood bottom; 21″ length, dovetail construction, natural finish
- Drawer glides
- Undermount, full extension, soft close
Hardware & shelves
- Door hinges
- Concealed, six-way adjustable, soft close
- Shelves
- 3/4″ A-grade plywood with wood veneer
- Shelf clips
- Metal
- Assembly clips
- Pre-installed, color-coated metal
- Base construction
- Wood corner brackets and I-beam construction
Assembly guides
Shipping & delivery
Care & warranty
Our design team can help plan your kitchen.
All Cabinets are Shipped RTA Ready-to-Assemble
All cabinets are shipped RTA Ready-to-assemble. The majority of standard base and wall cabinets take between 7-15 minutes to put together. Larger cabinets such as drawer base cabinets, pantry cabinets and oven cabinets can take longer.
Assembly Guides
